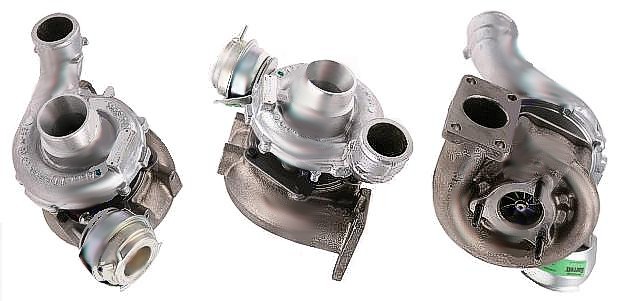

1997-04 Audi, VW GT2052V (S1) Turbo 454135-0009

1997-04 Audi, VW GT2052V (S1) Turbo 454135-0009
Item# turbo-car-audi-TC-4541350009
$1,042.64
Availability: Usually ships the next business day

Product Description


Part Number 454135-5009S
Previous Version 454135-0001, 454135-0002, 454135-0006, 454135-0009, 454135-9009S, 454135-9
OE number059145702D, 059145701C, 059145701G, GX, GV, C, CX, CV, 059145701K
Year 1997-04
Description Audi, Skoda, Volkswagen
CHRA 434766-0007 (434766-5007S) $495.00 NEW IN STOCK, MADE IN USA
Turbo Model GT2052V (S1)
Engine Manufacturer VW
Displacement 2.5L, 2496 ccm, V6, 144 VTI
EngineAKN, TDI V6
KW 110
RPM Max4000
Fuel Diesel
Bearing Housing 722282-0021/434765-0001
Turbine Wheel434883-0030/434883-0001
Comp. Wheel702492-0004/436131-0002 $48.16
Back plate701335-0003 $23.00
Heat shield Number443768-0003 $12.00
Repair KitN/A
Nozzle Ring 434764-0001/700968-0004 $188.27 NEW IN STOCK
Turbine Housing AR VNT1
Actuator434855-0001
Intercooler8ML376776-041/8ML376776-061 $525.00
ManufacturerHoneywell-Garrett

Applications

1999- Audi A4 2.5L TDI (B5) Engine AFB, AKN

1997-01 Audi A6 2.5L TDI (C5) Engine AFB, AKN

Audi A8 2.5 TDI (D2) Engine AFB, AKN

2001-04 Skoda Superb I 2.5L TDI Engine AFB, AKN

1998-00 Volkswagen Passat B5 2.5L TDI Engine AFB, AKN

2000-03Volkswagen Passat B5 2.5L TDI Engine AKN

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
