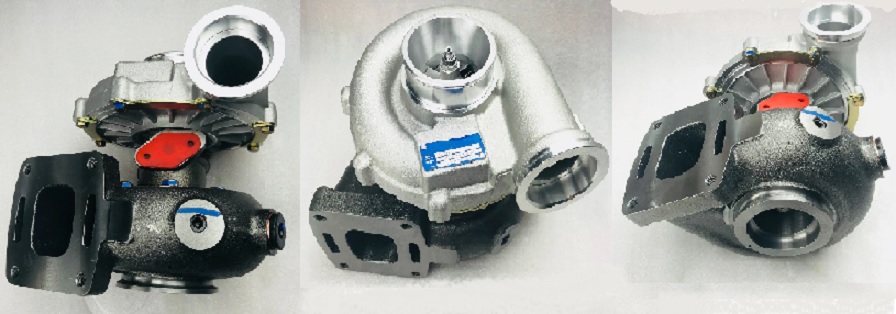

1996-05 Volvo Penta Ship K26 Turbo 53269886034

Item# turbo-marine-volvo-penta-TC-53269886034
$2,181.90
Availability: Usually ships the next business day

Product Description


Part Number53269886034
Previous Version5326-988-6034, 5326 988 6034
OE number3581191
Year1996-05
Description Ship
Manufacturer Part Number53269706034, 5326-970-6034
CHRA53267100072 (5326-710-0072) $659.90 NEW IN STOCK
Turbo ModelK26-2660GGAAA4.71GAAXB
EngineTAMD31M, TAMD41P-A, TAMD41H-B
Displacement 2.39L, 2390 ccm
KW110
RPM Max2390
Fuel Diesel
Angle α (compressor housing)43°
Angle β (turbine housing)315°
Bearing Housing53241500004 (858705)(53261500026)(Oil Cooled) $150.34 NEW IN STOCK
Turbine Wheel53261205002 (53261202107, 53261202111, 53261202119)(Ind. 54.54 mm, Exd. 64.25 mm, Trm 10.02, 12 Blades)(1301026435) $180.37 NEW IN STOCK
Comp. Wheel53261232029 (53261232027)(Ind. 39.5 mm, Exd. 66.1 mm, Trm 4.4, 6+6 Blades, Superback) $80.17 NEW IN STOCK
Back plate53261515713 (53261515710) $45.78 NEW IN STOCK
Heat shield Number53261652005 (858668)(53261652007) $22.75 NEW IN STOCK
Repair Kit53267110045 (53267110051, 53277110070) $86.00 NEW IN STOCK
Turbine housing (water-cooled)53261006435
Compressor Cover53261015217
Turbine Housing AR5
Gasket (turbine inlet)210294 (Inox Steel) $89.00
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210060 (860105)(409267-0003, 409267-0002, 210060-0000, 51914, 311585, 148062) $4.20
Replaced By53269886094
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1996-05 Volvo Penta Ship with TAMD31M Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
