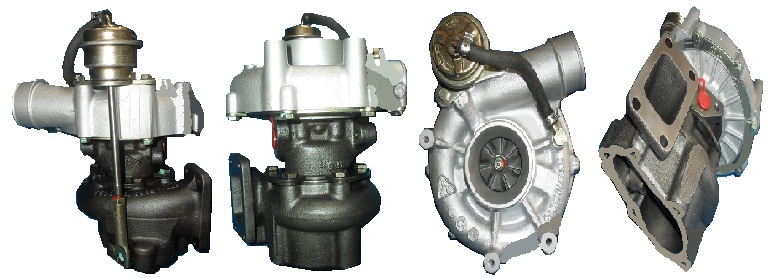

1995-03 Man Commercial Truck K26 Turbo 53269886206

1995-03 Man Commercial Truck K26 Turbo 53269886206
Item# turbo-truck-man-TC-53269886206
$1,748.93
Availability: Usually ships the next business day

Product Description


Part Number53269886206
Previous Version5326-988-6206, 5326 988 6206
OE number 51.09100-7390, 51091007390, 51.09100-9390, 51091009390
Year 1995-03
DescriptionCommercial Truck
Manufacturer Part Number 53269706206, 5326-970-6206, 5326 970 6206
CHRA53267100076 (5326-710-0076) $844.77
Turbo Model K26-2962MNAAA5.81GAAQD
Engine D0824LFL05
Displacement 4.58L, 4580 ccm
KW 115/156
RPM Max 2400
Fuel Diesel
Angle α (compressor housing)96°
Angle β (turbine housing)195°
Bearing Housing53241500020
Turbine Wheel53261205001 NEW IN STOCK
Comp. Wheel53271232222/53271232313
Back plate53271516700
Heat shield Number53261652005
Repair Kit53267110054/53267110055 NEW IN STOCK
Turbine Housing53261008003/53261008001/53261009003
Compressor Cover53271232222/53271232313
Turbine Housing AR5
Actuator58201104011/58201104065/58201104081
Settings Wastegate (pressure)1 60 bar
Settings Wastegate (lift shaft)4.50 mm
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1995-03 MAN L 2000 Engine D0824LFL01/02/04-10

1995-03 MAN LE 2000 Engine D0824LFL01/02/04-10

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
