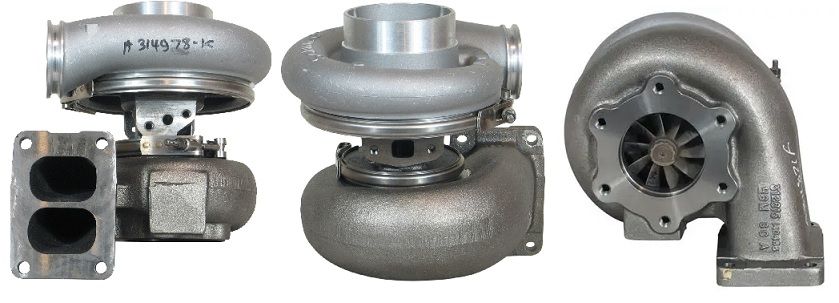

1994-06 Deutz Truck S3B Turbo 315061

1994-06 Deutz Truck S3B Turbo 315061
Item# turbo-truck-deutz-TC-315061
$1,874.60
Availability: Usually ships the next business day

Product Description


Part Number315061
Previous Part Number314455
OE number04222094KZ, 4222094KZ, 04222094, 4222094
Year1994-06
DescriptionTruck/Bus
Manufacturer Part Number 314455
CHRA317385 (315481, 315060) $875.90 NEW IN STOCK
Turbo Model S3B
Engine BF6M1015
Displacement 11.91L, 11910 ccm
KW250/340
FuelDiesel
Angle α (compressor housing)3°
Angle β (turbine housing) 0°
Bearing Housing 314236 (Oil Cooled) NEW IN STOCK
Turbine Wheel (left-hand thread) 314238 (316194)(left-hand thread)(Ind. 73.3 mm, Exd. 83.5 mm, Trm 14.36, 10 Blades) $403.75 NEW IN STOCK
Comp. Wheel314552 (314298, 315142)(Ind. 66.05 mm, Exd. 95. mm, 7+7 Blades, Superback) NEW IN STOCK
Back plate 199646 $25.93 NEW IN STOCK
Heat shield Number197394 (315964) $22.17 NEW IN STOCK
Repair Kit 318387 (318386)(1252203750, 5000030019) $96.33 NEW IN STOCK
Turbine Housing312821 $259.37
Compressor Cover314553
Gasket (turbine inlet) 409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003) $14.02
Gasket (turbine outlet)210276 (2445051, 123385)(Stainless Steel)
Gasket (turbine outlet)210222 (Stainless Steel) $18.50
Gasket oil inlet129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 129120, 201048, 3500682, 3709738, 3519763, 9738, 9988, 1S4810, 210060-0000, 51914, 148062, 311585, 210018-0000)(1900000025) $4.48
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1994-06 Deutz Truck with BF6M1015 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
