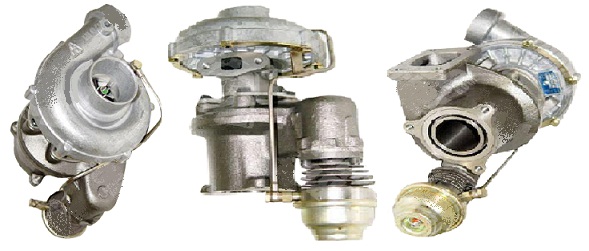

1985-96 Mercedes Benz 300 TD (W124) K24 Turbo 53249886701

1985-96 Mercedes Benz 300 TD (W124)  K24 Turbo 53249886701
Item# turbo-car-mercedes-TC-53249886701
Availability: Usually ships the next business day

Product Description

Part Number 53249886701
Previous Part Number5324-988-6701, 53249886700, 5324 988 6701, 53249886702
OE number0040966699, 6030901280, 6030900680, 0020969799, 0030963299. A0020969899
Year 1985-09
Description Mercedes E-Class 300 TD (W124)
Manufacturer Part Number53249706701, 5324-970-6701 5324 970 6701
CHRA 53247100513 (5324-710-0513, 53247100511, 53247100508) $694.83
Turbo Model K24.2-2467GXA6.53GAATF
EngineOM603A, OM603, OM364A
Engine Manufacturer Mercedes Benz
Displacement 3.0L, 2996 ccm, 6 Cylinders
KW108/147 HP
RPM Max 4600
Fuel Diesel
Angle α (compressor housing)287
Angle β (turbine housing) 220
Bearing Housing53241500015/53241500014/53241500025 (Oil Cool) $125.00
Turbine Wheel53241205007/53241205008/53241202110/53241202113
Comp. Wheel53241232006 (Ind. 40.50 mm, Exd. 60.50 mm, 6+6 Blades) $99.00
Back plate53261515708
Heat shield Number53241652003(409627-0000) $34.00
Repair Kit53247110020 $69.00 NEW IN STOCK
Turbine Housing53241007021/53241007025/53241007028
Compressor Cover53241015024
Turbine Housing AR 6
Waste gate valve58061100325 $571.41
settings Waste gate (pressure)1.00 bar
settings Waste gate (lift shaft)1.95 mm
NOTE Inter-cooled
ManufacturerBorg Warner - 3K - Schwitzer

Replaces 53249886700, 53249886702


1985-09 Mercedes E-Class 300 TD (W124) Engine OM603 6 Cylinders

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.


This part comes with ONE YEAR unlimited mileage warranty.
