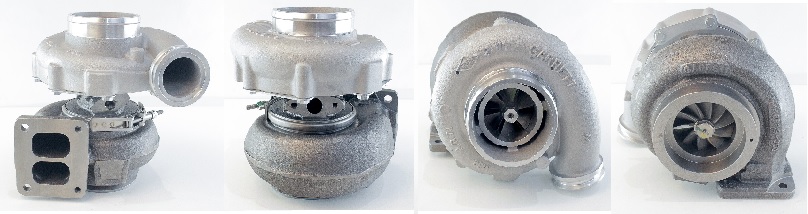

2000- Scania K-Bus GT4288 Turbo 709574-0004

Item# turbo-truck-scania-TC-7095745004S
Availability: Usually ships the next business day

Product Description

Part Number 709574-5004S
Previous Version 709574-0004
OE number 1449890
Year 2000-
Description Scania K-Bus, Truck
CHRA434251-0047 (434251-5047S) $550.00 NEW IN STOCK
Turbo Model GT4288
Engine DC11-03
Engine Manufacturer Scania
Displacement 10.64L, 10640 ccm, 6 Cylinders
KW 330
Fuel Diesel
Bearing Housing410310-0005 (Oil Cooled) $60.00 NEW IN STOCK
Turbine Wheel434281-0022 (Ind. 72.5 mm, Exd. 82. mm, 10 Blades) $148.00 NEW IN STOCK
Comp. Wheel434354-0012 (Ind. 62.4 mm, Exd. 87. mm, Trm 51, 6+6 Blades) $215.00 NEW IN STOCK
Back plate434256-0002 (449014-0005) $28.00 NEW IN STOCK
Heat shield Number410366-0007 (410366-0003, 410366-0004) $16.42 NEW IN STOCK
Repair Kit709153-0001 (709153-0002, 709153-0005)(1102042750) $90.80 NEW IN STOCK
Turbine Housing448940-0032
Compressor Cover434356-0049
Gasket (turbine inlet)409123-0002 (310694)(Inox Steel) $13.84
Gasket (oil outlet)210060 (311585, 2475013, 51914, 148062, 210060-0000, 409267-0002, 409267-0003)(Paper) $4.48
Gasket oil inlet129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035) $4.38
Manufacturer Honeywell-Garrett

Interchangeable with 709574-5004S, but changes the orientation

Interchangeable with 709574-5004S / 3597659


2000- Scania K-Bus, Truck with DC11-03 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.


This part comes with ONE YEAR unlimited mileage warranty.
