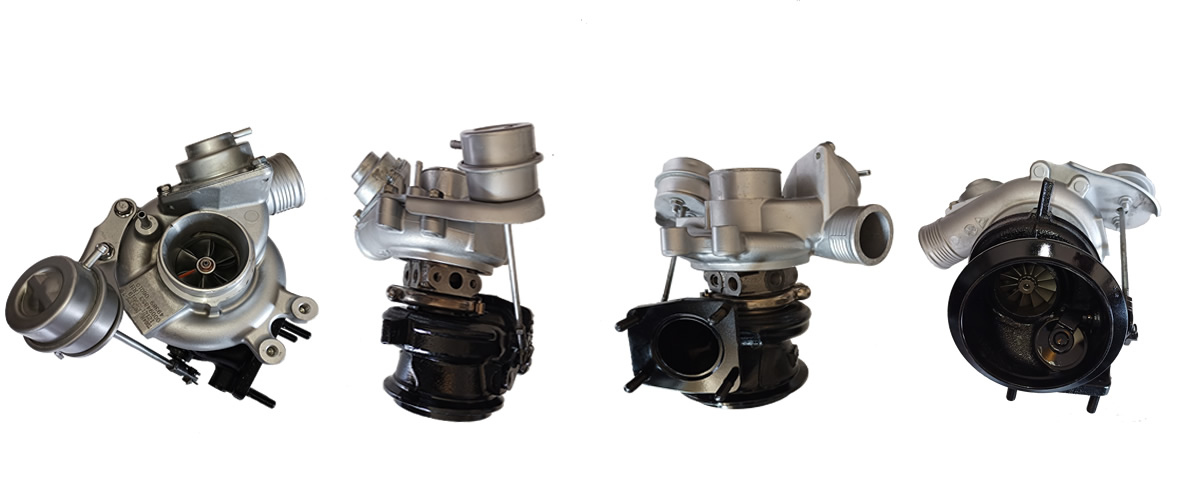

2011-14 McLaren MP4-12C TD04HL Turbo 49389-06010

2011-14 McLaren MP4-12C TD04HL Turbo 49389-06010
Item# turbo-car-McLaren-tc-4938906010
Availability: Usually ships the next business day

Product Description

Part Number 49389-56010S
Previous versions49389-06010, 4938906010
OE number00094853-2RH, 14111400037
DescriptionMcLaren MP4-12C Twin Turbos
Manufacturer Part Number49389-06010
CHRA49389-09600 (4938909600)(49389-4-121)
Turbo ModelTDO4HL, TD04HL20TK32S7
Displacement3.8L, 3799 ccm, V8
Model650S McLaren Spider
KW447/608/625 HP
Bearing Housing49356-09600 (Water Cooled)
Turbine Wheel(Ind. 45.58 mm, Exd. 51.88 mm, 12 Blades)
Compressor Wheel(Ind. 46.99 mm, Exd. 58. mm, 6+6 Blades, Superback)
Back plate NEW IN STOCK
Heat Shield NEW IN STOCK
Repair Kit49189-84000 (49177-80400)(1401404752, 509040002) $98.00 NEW IN STOCK
Turbine Housing49389-10200
Compressor Cover49389-52600
Gasket (turbine inlet)5I7933 $18.67
Gasket (oil outlet)210317 (5I7689)(Paper)(1900000042) $4.41
Listed$4.000.00 NEW
NoteTwin Turbos, Right Hand Side
NoteTwin Turbos, Left Hand Side use 49389-06000


2011-14 McLaren MP4-12C With M838T Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.


This part comes with ONE YEAR unlimited mileage warranty.
