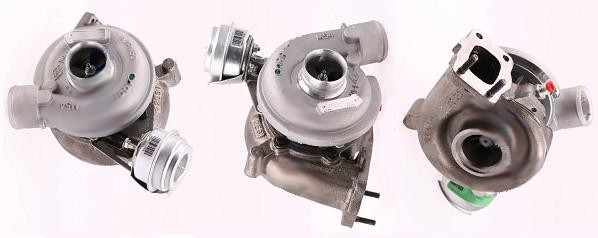

2000-08 Iveco Commercial Vehicle GT2256V Turbo 751758-0001

2000-08 Iveco Commercial Vehicle GT2256V Turbo 751758-0001
Item# turbo-commercial-iveco-TC-7517580001
$980.00
Availability: Usually ships the next business day

Product Description


Part Number751758-5001S
Previous Version751758-5001S, 751758-0001, 707114-0001, , 751758-0002
OE number500379251, 5001855042, 500379251
Year2000-08
DescriptionFiat, Iveco Daily III, Commercial
CHRA434766-0003 (434766-5003S)(1102022900, 1000010123) $295.00 NEW IN STOCK, MADE IN USA
Turbo ModelGT2256V
Engine8140.43K.4000
Engine ManufacturerSOFIM
Displacement2.8L, 2800 ccm, 4 Cylinders
KW103/105/146 HP
RPM Max3600
FuelDiesel
Angle α (compressor housing)300
Angle β (turbine housing)195
Bearing Housing700967-0004 (Oil Cooled)(1102022452, 1900011135B) $69.00 NEW IN STOCK
Turbine Wheel711382-0002 (Ind. 50.01 mm, Exd. 45.77 mm, Trm 9.67, 12 Blades)(1102022438, 1100016135) $96.00 NEW IN STOCK
Comp. Wheel434802-0002 (436563-0009, 707747-0001)(Ind. 41.60 mm, Exd. 55.98 mm, Trm 6.60, 6+6 Blades, Superback)(1102022400, 1200016045) $39.62 NEW IN STOCK
Back plate701335-0005 (1300011021B) $21.00 NEW IN STOCK
Heat shield Number443768-0003 (2030016030) $21.80 NEW IN STOCK
Repair Kit732252-0001 (732248-0003)(500010067B) NEW IN STOCK
Nozzle Ring Assembly700968-0004 (700968-0001)(1102020830, 3000016011)$188.27 NEW IN STOCK
Actuator716375-0002 (2061016142) $67.22
Turbine Housing A/RVNT1
Gasket Kit 215010
Gasket (turbine inlet)210560 (Stainless Steel)
Gasket (oil outlet)210243 (2455001)(34336-04100)(Paper)
NoteSOFIM common rail 777
ManufacturerHoneywell-Garrett

Applications

2000- Iveco Commercial CAR VAN with 8140.43K.4000 Engine

2000- Iveco Commercial Daily 3.5 tonne with 8140.43K.4000 Engine

2000- Iveco Commercial Daily 6.5 tonne with 8140.43K.4000 Engine

2000- Iveco Commercial Daily C15 with 8140.43K.4000 Engine

2000- Renault Commercial Mascotte with 140.43K.4000 Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
