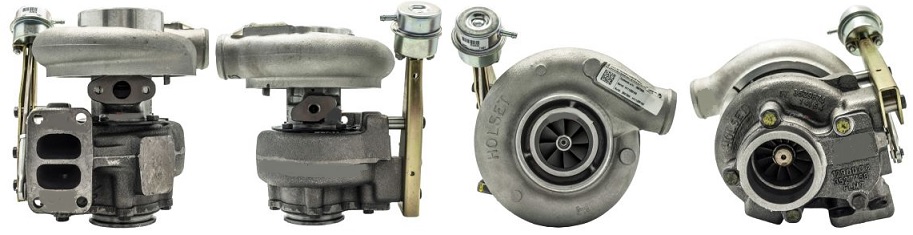

2001- Cummins Industrial HX35W Turbo 3597508

2001-  Cummins Industrial HX35W Turbo 3597508
Item# turbo-industrial-cummins-TC-3597508
Availability: Usually ships the next business day

Product Description

Part Number 3597508
Year 2001-
Description Industrial Generator
Manufacturer Part Number 3597509 , 3597509H
CHRA4027938 (4027938R) $817.40 NEW IN STOCK
Turbo ModelHX35W-L8264T/E14PB11, HX35W
Engine Manufacturer Cummins
KW 168 HP
Angle α (compressor housing)360
Angle β (turbine housing)360
Bearing Housing3591801 (Oil Cooled) $181.66 NEW IN STOCK
Turbine Wheel3519336 (Ind. 61.3 mm, Exd. 69.47 mm, Trm 9.18, 10 Blades)(1152301435, 1100030005) $141.66 NEW IN STOCK
Comp. Wheel3599594 (3599646, 4036126)(Ind. 53.97 mm, Exd. 82.04 mm, Trm 5.96, 8+8 Blades, Superback)(1153035402, 1200016158) $68.57 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $23.55 NEW IN STOCK
Heat shield Number3519302 (1152301340, 2030016031) $14.72 NEW IN STOCK
Repair Kit3575169 (Minor)(1153035750, 5000020021) $88.80 NEW IN STOCK
Gasket Kit$19.56


2001- Cummins Industrial Gen Set

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.


This part comes with ONE YEAR unlimited mileage warranty.
