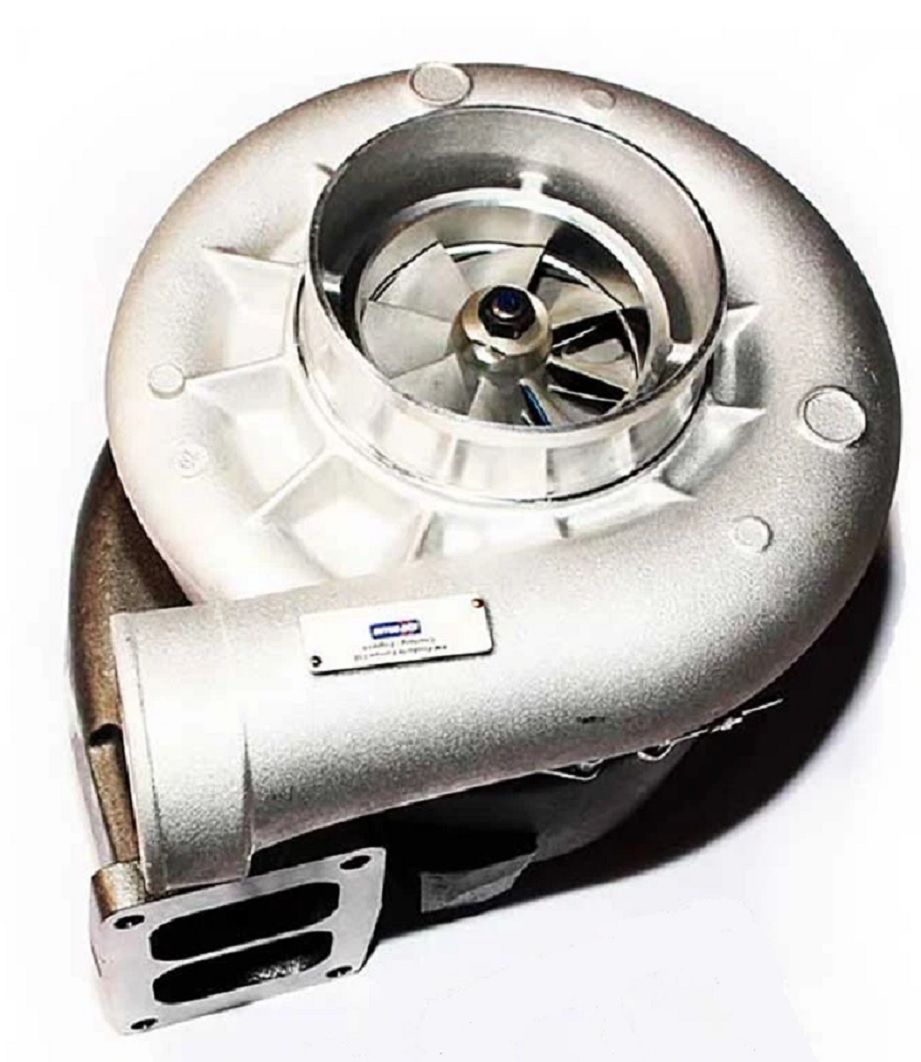

2000- Cummins Industrial Engines Various HX80 Turbo 3767948

Item# turbo-various-cummins-TC-3767948
$3,650.78
Availability: Usually ships the next business day

Product Description


°
Part Number 3767948
Previous Part Number3528458, 3528459, 3528460, 3539278, 3539279, 3539280, 3594157, 3594158, 3594159, 3767948
OE number3803339, 3803339NX, 3803339RX, 3804861, 3804861NX. 3804861RX, 2882095, 2882095NX, 2882095RX
Description Various, Genset G3/4
Manufacturer Part Number 4033452, 3594158 4033452
CHRA3594201 (3545465) $1185.50
Turbo Model HX80, HX80-3875AC/M59P4
EngineKV16, KTA50
KW50
EngineD2866LF03/LU01, D2866LF05/LU03
FuelDiesel
Angle α (compressor housing)180°/360°
Angle β (turbine housing) 180/360°
Bearing Housing3594555 (Oil Cooled) $544.54 NEW IN STOCK
Turbine Wheel3521034 (Ind. 111.6 mm, Exd. 128.9 mm, Trm 18.7, 11 Blades)(1152105436) NEW IN STOCK
Comp. Wheel5323925 (3533704)(Ind. 104.0 mm, Exd. 141.05 mm, Trm 10.05, 7+7 Blades, Superback) $406.83 NEW IN STOCK
Back plate2841902 NEW IN STOCK
Heat shield Number 3536588
Repair Kit4027973 NEW IN STOCK
Turbine Housing3528536
Compressor Cover3539268
Replaced by 3594157
ManufacturerHOLSET

Applications

2000- Cummins Industrial Engines Genset, Various with KTA50 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
