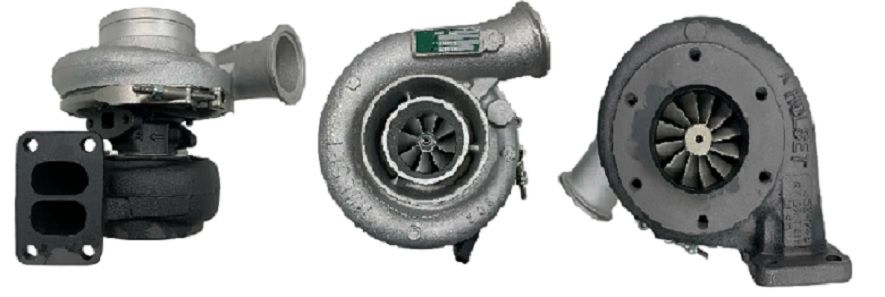

1993-03 Volvo, Volvo White Various H1E Turbo 3533595

Item# turbo-various-volvo-TC-3533595
$1,135.22
Availability: Usually ships the next business day

Product Description


Part Number 3533595
Previous Version 20411831, 20411838, 3533595D, 3534665, 3534666, 3595232, 3595233, 3595234, 4033341, 4033341H
OE number 4033900, 403390000, 4033900H, 477834, 477865, 8113920
Description Truck, Industrial vehicle
CHRA3545711 (3545731, 3575683, 3575683H)(1000020190) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelH1E-8264BV/H14JA8, H1E
EngineVED7, TD73ES
Engine Manufacturer Volvo
Displacement7.0L, 7000 ccm, 6 Cylinders
FuelDiesel
Angle α (compressor housing)357°
Angle β (turbine housing) 45°
Bearing Housing3502500 (3520574, 3526562)(Oil Cooled)(1152301450, 1900011017) $70.00 NEW IN STOCK
Turbine Wheel3522879 (3519892, 3535359)(Ind. 76. mm, Exd. 64. mm, Trm 10.41, 12 Blades, LH) (1152301436, 1100030008) $127.00 NEW IN STOCK
Comp. Wheel3599646 (3525398, 3537154, 3537156)(Ind. 54. mm, Exd. 81.78 mm, Trm 6.04, 8+8 Blades, Superback)(1152301403, 1200016658) $45.92 NEW IN STOCK
Back plate3522801 (1300016005) $26.20 NEW IN STOCK
Heat shield Number3519302 (1152301340, 2030016031) $14.00 NEW IN STOCK
Repair Kit4027309 (3802148)(1152301755, 5000020014) $74.00 NEW IN STOCK
Gasket (turbine inlet)409039-0000 (210022-0000)(Stainless Steel) $14.72
Gasket (turbine outlet)210226 (Stainless Steel) $18.85
Gasket oil inlet147837 (409036-0000, 210023-0000, 55739, 210023) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Gasket Kit215135 $26.32
ManufacturerHOLSET

Applications

1993-03 Volvo B7 CH 30000 Truck with TD73ES Engine

1993-03 Volvo Volvo White Truck with VED7 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
