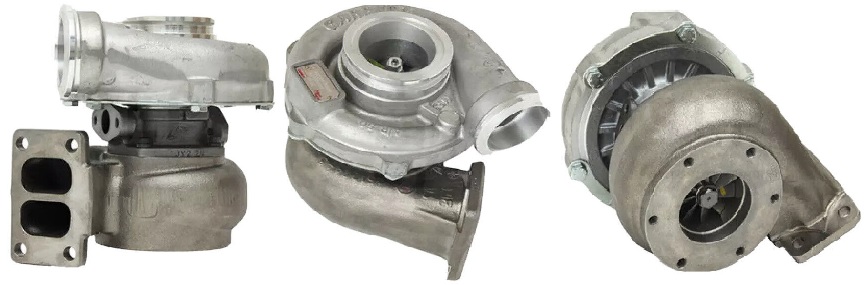

1995- Volvo Truck FL6 Turbo 452176-0002

1995-  Volvo Truck FL6    Turbo 452176-0002
Item# turbo-truck-volvo-TC-452176-0002
$2,538.00
Availability: Usually ships the next business day

Product Description


Part Number 452176-0002
Previous Part Number 452176-5002S, 452176-2
OE number 8192140
Year 1995-
Description Truck FL6
CHRA436058-0002 (436058-5002S) $550.00 NEW IN STOCK
Turbo Model GT3271
Engine D6A
Engine Manufacturer Volvo
Angle α (compressor housing) 215°
Angle β (turbine housing) 315°
Bearing Housing 447535-0003 (Oil Cooled)(1900011181) $85.00 NEW IN STOCK
Turbine Wheel 434444-0003 (Ind. 64. mm, Exd. 54.8 mm, Trm 10.71, 10 Blades)(1102032435) $189.00 NEW IN STOCK
Comp. Wheel 434244-0006 (Ind. 74. mm, Exd. 50.2 mm, Trm 50, 6+6 Blades, Billet) $158.00 NEW IN STOCK
Back plate 436040-0001 (1102035300, 1300016138) $21.33 NEW IN STOCK
Heat shield Number 447553-0006 $12.80 NEW IN STOCK
Repair Kit 709147-0001 (1102032751, 5000010173) $127.00 NEW IN STOCK
Turbine Housing 451225-0003
Compressor Cover 436163-0003
Gasket (turbine inlet) 409039-0000 (409039-0001, 210019, 210022-0000, 2405022, 2405023)(Inox Steel)(1900000006) $13.52
Gasket (turbine outlet) 409196-0001 (210226)(Inox Steel) $17.71
Gasket oil inlet 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48
Gasket (oil outlet) 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(2475013)(Paper) $4.48
ManufacturerHoneywell-Garrett

Applications

1995- Volvo Truck FL6 with D6A Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
