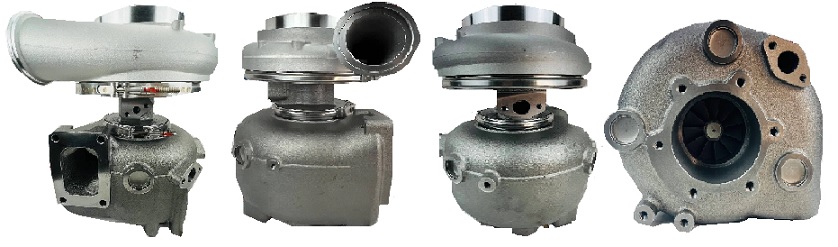

1999-11 Volvo Penta Ship S500W Turbo 15009987790

1999-11 Volvo Penta Ship S500W Turbo 15009987790
Item# turbo-marine-volvo-penta-TC-15009987790
$3,272.15
Availability: Usually ships the next business day

Product Description


Part Number15009987790
Previous Version1500-998-7790, 317790, 1500-988-7790, 1500 998 7790
OE number 3826598, 3802116, 3802114
Year 1999-11
DescriptionShip, Marine
Manufacturer Part Number317790, 1500-970-7790
CHRA317865 $1958.17 NEW IN STOCK
Turbo ModelS500W-110_55AABM/0.82HJ2
Engine ModelD12, D31A, D31B and D31D, MD11 EURO 3
Interchangeable Turbo Part OE No317790, 3802116, 3826598
FuelDiesel
Source Reference 866720
Displacement12.0L, 12000 ccm
Engine Manufacturer Volvo - Penta
KW 507/680
RPM Max 2300
Fuel Diesel
Angle α (compressor housing)90°
Angle β (turbine housing)320°
Bearing Housing317303 (Oil Cooled)
Turbine Wheel318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades) $672.48 NEW IN STOCK
Comp. Wheel317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet) $394.27 NEW IN STOCK
Back plate317311 (171524) $74.04 NEW IN STOCK
Heat shield Number318032
Repair Kit318416 $227.25 NEW IN STOCK
Turbine Housing (water-cooled)317867
Compressor Cover317295
Gasket (turbine inlet)470939 (417382, 20784537) (Stainless Steel) $21.50
Gasket oil inlet420641 (1006177) $3.61
Gasket (oil outlet)470993 (1027702) $3.61
NOTEIntercooler, Restricted to Volvo-Penta
ManufacturerBorg Warner - 3K - Schwitzer, BWTS UK

Applications

1999-11 Volvo Penta Ship with MD11 EURO 3 Engine

Core Charge

There is a $600.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
