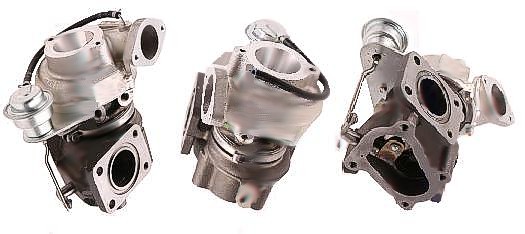

1999-07 Toyota Bus RHF5H Turbo VC430046 VB9

1999-07   Toyota Bus     RHF5H Turbo VC430046     VB9
Item# turbo-car-toyota-TC-VB9
$2,590.00
Availability: Usually ships the next business day

Product Description


Part Number VC430046
Previous Part Number VB430046, VA430046
OE Number 1720158070,17201-58070
V-SPEC. VB9
Year1999-05
DescriptionToyota Bus Coaster Optimo
CHRAVAX50019
Turbo Model RHF5H-83001P17NHBRLL413CFZ
Engine Manufacturer Toyota
Engine 15B (DI 4.0L) EURO 3, 15BFTE
FuelDiesel
Displacement4.14L, 4104 ccm, 4 Cylinders
KW136 HP
Angle α (compressor housing)71.50
Angle β (turbine housing)65
Repair KitMajor RHF5 $99.60
Actuator $199.00
Turbine Housing AR 17
ManufacturerIHI

Applications

1999-07 Toyota Bus, Coaster, Optimo 15BFTE

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
