1999-11 Renault Truck Euro 3 S200G Turbo 318154

1999-11 Renault Truck Euro 3 S200G Turbo 318154
Item# turbo-truck-renault-TC-318154
$1,980.00
Availability: Usually ships the next business day

Product Description


Part Number318154
OE number 5010450019, 5001865040
Year 1999-11
Description Truck
Manufacturer Part Number 314592
CHRA 318808 (318155) $300.00 NEW IN STOCK, MADE IN USA

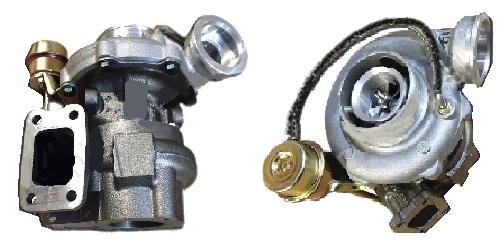

Turbo Model S200G
Engine MIDR040226 C63/B63, MIDR-040226 C63/B63 Euro-3
Displacement4.2L, 4120 ccm
KW 122/166
Fuel Diesel
Angle α (compressor housing) 340
Angle β (turbine housing) 70
Bearing Housing318912 (318330)(Oil Cooled) $97.50 NEW IN STOCK
Turbine Wheel168574 (Ind. 57.96 mm, Exd. 46.22 mm, Trm 7.31, 10 Blades) $97.00 NEW IN STOCK
Comp. Wheel318077 (Ind. 42.77 mm, Exd. 63.55 mm, Trm 5.15, 7+7 Blades, Superback)(302040001) $144.90 NEW IN STOCK
Back plate167744 (1253200300) $19.00 NEW IN STOCK
Heat shield Number198761 $13.25 NEW IN STOCK
Repair Kit318383 (1253200750) $97.60 NEW IN STOCK
Turbine Housing318078
Compressor Cover318670
Actuator and hose assembly318800
Waste gate (pressure)1.689-1.758 bar
Waste gate adjustment (rising stem) 0.38 mm
Gasket (turbine inlet)311698 $15.66
Gasket (oil outlet)311496 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807, 210021, 148062) $3.32
Gasket Kit318421 $18.20
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1999-11 Renault Truck Euro 3 with MIDR040226 C63/B63 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
