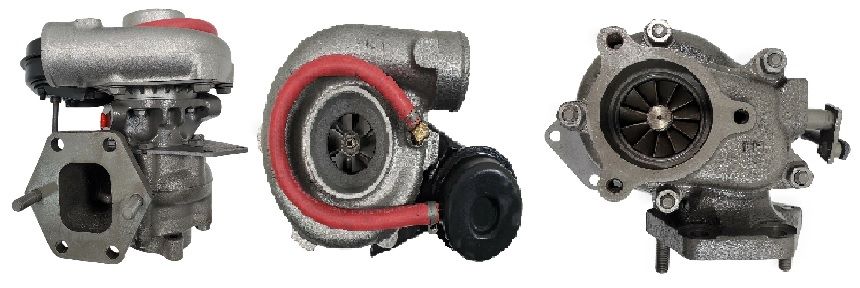

1982-87 Renault Fuego TB0325 Turbo 466042-0001

Item# turbo-car-renault-TC-4660420001
$130.00
Availability: Usually ships the next business day
Currently Out of Stock. Call for information.

Product Description


Part Number466042-5001S
Previous Version466042-0001, 466042-1
OE Number7700709268, 7.700.711.895, 7.700.709.268
Year 1982-87
Description Renault Fuego
CHRA409853-0029 (409853-5029S) $295.00 NEW IN STOCK
Turbo Model TB0325
EngineA7L7230
Engine Manufacturer Renault
Displacement 1.6L, 1600 ccm, 4 Cylinders
Fuel Gas
Angle α (compressor housing) 190
Angle β (turbine housing)120
Bearing Housing 430027-0025/430027-0022 (430027-0012, 186879, 186881)(1100030450)(Oil Cooled) $55.20 NEW IN STOCK
Turbine Wheel451311-0014/451311-0003 (1100030435)(Ind. 59.0 mm, Exd. 48.35 mm, Trm 67, 11 Blades) $169.60 NEW IN STOCK
Comp. Wheel409096-0011 (1100030403)(Ind.60.0 mm, Exd. 37.70 mm, Trm 40, 6 blades) $119.00 NEW IN STOCK
Back plate409629-0003/409629-0001/409629-0006 (1100030300) $48.00 NEW IN STOCK
Heat shield Number409639-0000 $14.80 NEW IN STOCK
Repair Kit707897-0001 (1100030750) $71.00 NEW IN STOCK
Turbine Housing430647-0011
Compressor Cover409589-0037/409115-0034
Turbine Housing AR0.36
Actuator435724-0005
Settings waste gate (pressure)0.85-0.92
Settings Waste gate (lift shaft)0.38 mm
Gasket (turbine inlet)409039-0001 (409039-0000, 210019, 2405022) (Inox Steel) $13.52
Gasket (turbine outlet)210275 (Stainless Steel)
Gasket oil inlet210023 (Paper) $4.48
Gasket (oil outlet)210021 (409037-0000)(Paper) $3.32
ManufacturerHoneywell-Garrett

Applications

1982-87 Renault Fuego with A7L723 Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
