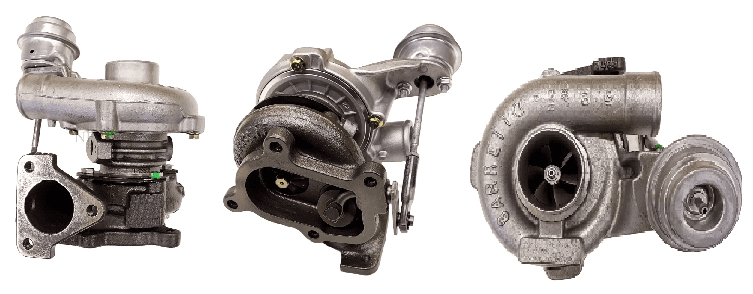

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1998-04 Opel Frontera B GT1549S Turbo 454219-0003
Product Description
| Part Number | 454219-5003S |
| Previous Version | 454219-0003, 454219-3, 454219-0001 |
| OE Number | 90573534, 860033 |
| Year | 1998-04 |
| Description | Opel Frontera B 2.2 DTI |
| CHRA | 433289-0072 (433289-5072S, 433289-0040, 1102015921) $325.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | GT1549S |
| Engine | 22HC |
| Engine Manufacturer | Opel |
| Displacement | 2.2L, 2171 ccm |
| KW | 85/120 |
| RPM Max | 4300 |
| Fuel | Diesel |
| Angle α (compressor housing) | 174° |
| Angle β (turbine housing) | 300° |
| Bearing Housing | 433275-0002/713782-0002 (Oil Cooling Type) $69.68 NEW IN STOCK |
| Turbine Wheel | 433298-0030/433165-0001/433165-0007/433298-0001/434713-0001/434713-0005/434713-0015 $88.50 NEW IN STOCK |
| Comp. Wheel | 436132-0002/703928-0002 $68.16 NEW IN STOCK |
| Back plate | 700593-0006/703682-0045 (OD 99 mm/10 mm P/Ring) $31.20 NEW IN STOCK |
| Heat shield Number | 434302-0001 $11.52 NEW IN STOCK |
| Repair Kit | 732252-0001 $97.60 NEW IN STOCK |
| Turbine Housing | 435788-0040 |
| Compressor Cover | 434952-0001 |
| Turbine Housing AR | 0.40 |
| Actuator | 433483-0007 |
| Settings Waste gate (pressure) | 0.350-0.420 bar |
| Settings Waste gate (lift shaft) | 8.5-12.5 mm |
| Gasket (turbine inlet) | 210505 |
| Gasket (turbine outlet) | 210534 |
| Gasket (oil outlet) | 210243 |
| Manufacturer | Honeywell-Garrett |
1998-04 Opel Frontera B 2.2L DTI Engine X22DTH, Y22DTH There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
