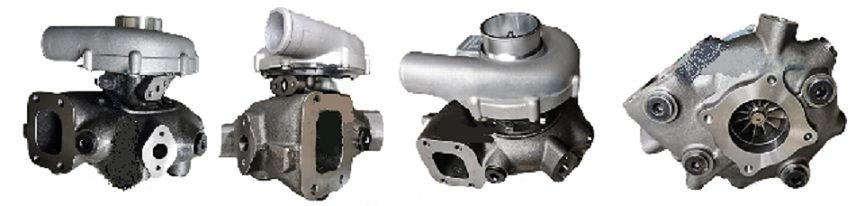

1982-10 MAN Commercial Vehicle, Volvo/Volvo-Penta K28 Turbo 53289886490

1982-10 MAN Commercial Vehicle, Volvo/Volvo-Penta K28 Turbo 53289886490
Item# turbo-commercial-man-TC-53289886490
$2,642.55
Availability: Usually ships the next business day

Product Description


Part Number53289886490
Previous Version5328-988-6490, 5328 988 6490
OE number846807, 846806, 3802021, 877028
Year1982-10
Description Commercial, Industrial, Marine, MAN Built-in engine, Volvo/Volvo-Penta
Manufacturer Part Number53289706490, 5328-970-6490
CHRA53287100041 (5328-710-0041) $930.46 NEW IN STOCK
Turbo ModelK28-3464MOA14.72FZASB
Engine TMD100, TMD100C, TMD102A, TD100CHC, TD100CRC, D2542LE
Displacement9.6/20.9L, 9600/20900 ccm
KW295/300/408
RPM Max1800/2000
FuelGasoline
Engine speed: 1800
Angle α (compressor housing)90°
Angle β (turbine housing)90°
Bearing Housing53271500010 (845040)(Oil Cooled) $252.94 NEW IN STOCK
Turbine Wheel53281205001 (53281202106)(847649)(Ind. 72.1 mm, Exd. 81.2 mm, Trm 14.7, 12 Blades) $299.00 NEW IN STOCK
Comp. Wheel53291232210 (53291232013, 53291232004, 53291232029)(847644)(Ind. 55.7 mm, Exd. 87. mm, Trm 6.7, 7+7 Blades, Superback) $105.56 NEW IN STOCK
Back plate53291515701 NEW IN STOCK
Heat Shield53271652003 (838563) $42.24 NEW IN STOCK
Repair Kit53287110007 (53287110013)(847650) $125.00 NEW IN STOCK
Turbine Housing (water-cooled)53281006405 (53281006400, 53281006403)
Compressor Cover53291015007
Turbine Housing AR14
Gasket kit876322
NOTEIntercooler
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1986-10 MAN Commercial with TMD100, D2542LE

1982-10 Volvo-Penta Marine with TMD100, D2542LE

MAN Built-in Engine with TMD100, D2542LE Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
