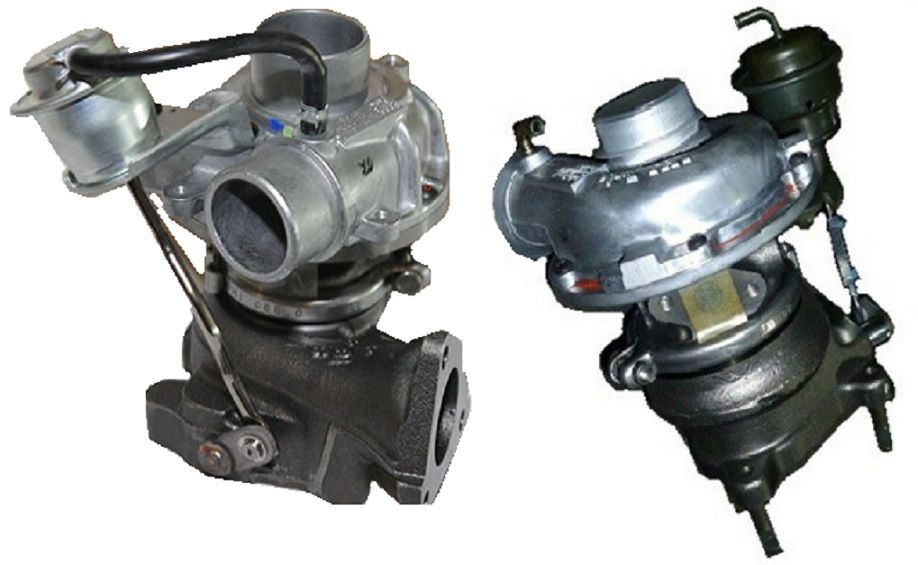

1989-90 Maserati Bi Turbo 228 RHB51W Turbo NN130080 VM7R

Item# turbo-car-maserati-TC-NN130080
$2,835.77
Availability: Usually ships the next business day

Product Description


Part NumberNN130080
Previous Version VC130090, VA130090, VB130090
OE number470360000, 470 360 000, 470360100 , 470 360 100
V-SPEC VM16R, VM7R, VM17L, VM14R, VM22R
Description Maserati Bi-turbo 228, Bi-turbo 2000
CHRAVA810016
Turbo ModelRHB51W-34001P9NRBS311AZ, RHB51W
Displacement2.8L, 1996 ccm, 2800 ccm
Engine AM473
KW162/226 HP
FuelGas
Angle α (compressor housing) 330°
Angle β (turbine housing) 330°
Bearing Housing NN133360 (Oil Cooled)
Turbine WheelNN136202
Comp. WheelNN133021
Back plateNN133021 (64T-002) $84.50
Heat shield NumberNN137055 (38T-013) $11.25
Repair KitNN139921 (509T-530) $89.00
Turbine HousingNN139947
Compressor CoverNN134462
Turbine Housing AR9
ActuatorNN976009
Gasket (turbine inlet)210385
Gasket (turbine outlet)210583 (2445219)
Gasket (oil outlet)210243 $4.50
ManufacturerIHI

Applications

1989-90 Maserati Bi-turbo 228 Engine AM473 (R)

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
