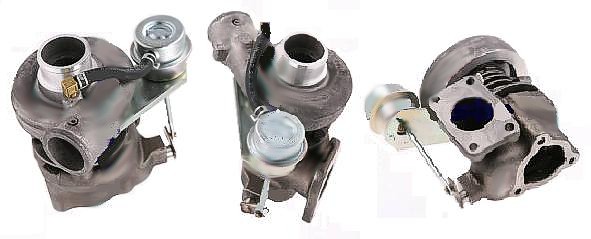

1994- Fiat Commercial Vehicle TB0269 Turbo 454055-0002

1994-  Fiat Commercial Vehicle TB0269 Turbo 454055-0002
Item# turbo-commercial-fiat-TC-4540555002S
Availability: Usually ships the next business day

Product Description

Part Number 454055-5002S
Previous Version454055-0002
OE number 1307679080, 46234429
CHRA 443854-0085 $395.00 NEW IN STOCK, MADE IN USA
Turbo ModelTB0269
Engine M.705.VT.19.D
Engine ManufacturerFiat
Displacement1.9L, 1905 ccm
KW80/90 HP
RPM Max4200
Angle α (compressor housing) 42
Angle β (turbine housing) 120
Bearing Housing 430350-0003
Turbine Wheel 435243-0002
Comp. Wheel 410450-0011
Back plate 432280-0001
Heat shield Number 430875-0001
Repair Kit 709143-0001
Turbine Housing 435024-0005
Compressor Cover 409589-0335
Turbine Housing AR 0,35
Actuator 430819-0230
Gasket 215305
Waste gate adjustment (pressure) 0.880 - 0.950 bar
Settings Waste gate (lift shaft) 1.00 mm
Manufacturer Honeywell-Garrett


1994-01 Fiat Commercial Ducato II with M.705.VT.19.D Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.


This part comes with ONE YEAR unlimited mileage warranty.
