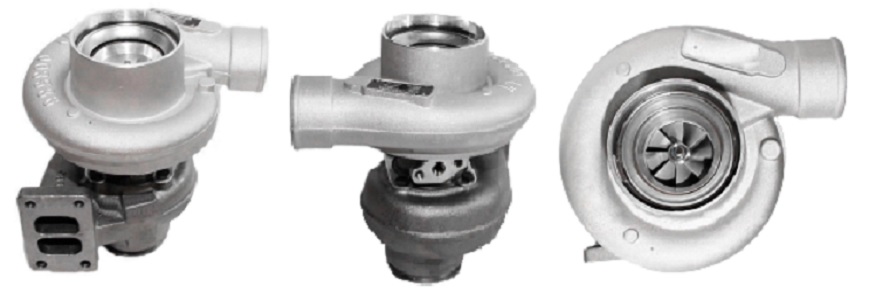

1995- Cummins Truck HX35 Turbo 3536473

Item# turbo-truck-cummins-TC-3536473
$1,450.00
Availability: Usually ships the next business day

Product Description


Part Number3536473
Previous Part Number3536472, 3536474, 3536474H, 3537093, 3537096, 3537238, 3590091, 3592221, 3593287
OE number3802819, 3802819RX, 4031510
Year1995-05
DescriptionFORD Truck, Military, Various, Truck, Military, Euro 2-HCV
Manufacturer Part Number 3537094, 3590091, 3592221, 3537238, 3537095, 3537096, 4031510, 3593287, 3592375, 3537093, 3591244, 3594310, 3592671, 4037308, 3598110
CHRA
CHRA3537817 (302-00001, 3580902, 4027480, 4027950, 5451473)(1000020152) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35-L8264AC/E18DA11, HX35
MakeTCL
ModelHCV
Engine6BT, 6BTA, 6BTAA, 6BTA Euro-2, DINA ENGINE, B SERIES
Displacement5.9L, 5900 ccm
Fuel Diesel
KW139/160/190
Engine Manufacturer Cummins
Angle α (compressor housing0/306º
Angle β (turbine housing) 180º
Bearing Housing 4032032 (3532631, 4027872, 3539694, 3599943, 4027754, 4035136, 4036549, 4027443)(84.50 mm)(Oil Cooled)(1900011016) $85.00 NEW IN STOCK
Turbine Wheel3519336 (3595832)(Ind. 70.05 mm, Exd. 59.94 mm, Trm 10.99, 12 Blades)(1152301435, 1100030005) $126.74 NEW IN STOCK
Comp. Wheel3599594 (3537168, 3599646, 4036126)(6735818031)(Ind. 53.97 mm, Exd. 82.04 mm, Trm 5.97, 8+8 Blades, Superback)(1153035402, 1200016158) $60.50 NEW IN STOCK
Back plate 3530923 (1154351300, 1800016009) $24.23 NEW IN STOCK
Heat shield Number3519302 (3519304)(1152301340, 2030016031) $14.96 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021, 5000020029) $88.80 NEW IN STOCK
Turbine Housing3519409 $197.00 NEW IN STOCK
Compressor Cover3536495 $164.70
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHOLSET

Applications

1995- Cummins Truck B Series with 6BT, 6BTA, 6BTAA Engine

1995- DAF Truck with 6BT, 6BTA, 6BTAA Engine

2005- Ford Truck with Euro-2 with 6BT, 6BTA, 6BTAA Engine

1995- Cummins Military with 6BT, 6BTA, 6BTAA Engine

1995- Cummins Various with 6BT, 6BTA, 6BTAA Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
