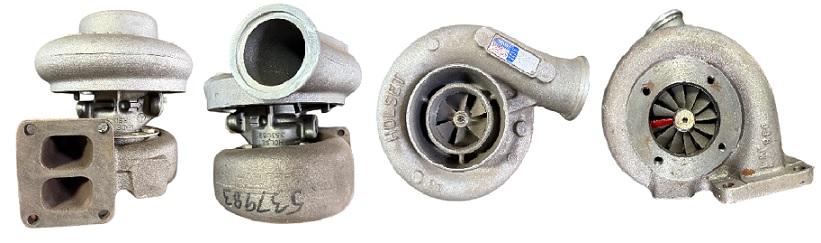

1997- Cummins Bus, Truck HX40 Turbo 3539556

Item# turbo-truck-cummins-TC-3539556
$1,867.00
Availability: Usually ships the next business day

Product Description


Part Number3539556
Previous Part Number3539557, 3539557H
OE number3804871
Year1997-
Description Truck, Bus
Manufacturer Part Number 3539557
CHRA4027280 (4027279) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model HX40
Engine M11
Engine Manufacturer Cummins Liter: 11.0
Angle α (compressor housing) 8°
Angle β (turbine housing) 285°
Bearing Housing3537112 (4038197, 3593878, 3591378)(Oil Cooled)(1900011016A) $65.24 NEW IN STOCK
Turbine Wheel3522880 (3592708)(Ind. 75.94 mm, Exd. 67.05 mm, Trm 12.32, 12 Blades)(1100030009) $115.10 NEW IN STOCK
Comp. Wheel3599550 (3594833, 3537170)(Ind. 60.09 mm, Exd. 86.05 mm, Trm 6.96, 6+6 Blades, Superback)(1200016210) $68.57 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $23.55 NEW IN STOCK
Heat shield Number3519302 (1152301340, 2030016031) $14.72 NEW IN STOCK
Repair Kit3575169 (Minor)(1153035750, 5000020021) $88.80 NEW IN STOCK
Actuator4030223
Gasket Kit(2090505304) $19.56
ManufacturerHOLSET

Applications

1997- Cummins Truck / Bus with M11 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
