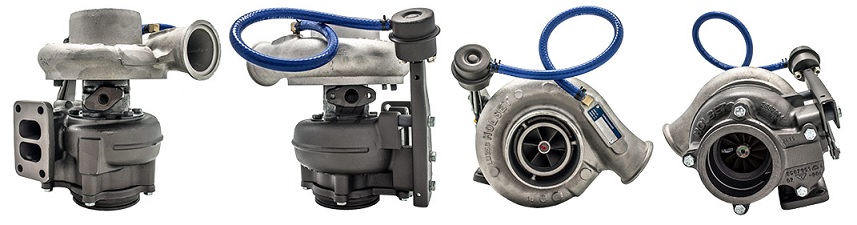

1996- Cummins Industrial, Bus, Various HX40W Turbo 3538212

1996- Cummins Industrial, Bus, Various HX40W Turbo 3538212
Item# turbo-various-cummins-TC-3538212
$1,842.00
Availability: Usually ships the next business day

Product Description


Part Number3538212
Previous Versions3538213, 3591016, 3591027, 3591029, 3591030, 3591031, 3591034, 3591037, 3591041, 3591043, 3591457, 3591458, 3592065, 3592066, 3592251, 3592252, 3599334, 4033673H
OE Number3800377, 380037700, 3800377NX, 3800377RX, 3800381, 3800381NX, 3800381RX, 4033673H
Year1996-
DescriptionPeterbilt, Bluebird Bus, Cummins, Encore, Various
CHRA3591196 (4027676, 3538379, 4027906)(1000020132) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX40W-P8594L/H16UD8, HX40W
Engine Model 6CTA, 6CTAA, 6CTAA Encore
Engine Manufacturer Cummins
Displacement8.3L, 8300 ccm
KW300
FuelDiesel
Angle a (compressor housing) 145/165/185/229/230/275º
Angle ß (turbine housing) 15/133/143/175º
Bearing Housing 3537112 (3593878, 4038197)(Oil Cooled)(1900011016A) $89.00 NEW IN STOCK
Turbine Wheel3522879 (3535359)(Ind. 64. mm, Exd. 76. mm, 12 Blades)(1100030008) $159.00 NEW IN STOCK
Comp. Wheel3599550 (Ind. 60. mm, Exd. 86. mm, Trm 49, 6+6 Blades, super back)(1200016210) $74.76 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $33.48 NEW IN STOCK
Heat shield Number3519304 (3519302)(1152301340, 2030016031) $24.95 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Gasket (oil outlet)210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48
Gasket (oil inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52
Gasket Kit3545575 $18.19
ManufacturerHolset

Applications

1996- Cummins Industrial, Bus, Various with 6CTAA Encore Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
