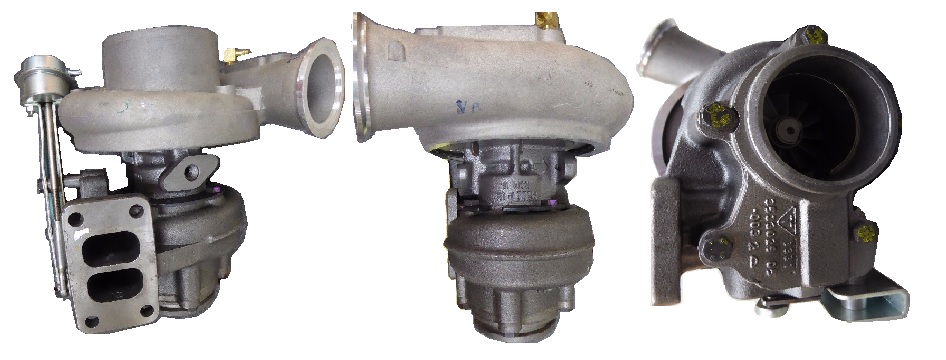

1996- Cummins Freightliner, Automotive HX35W Turbo 3538883

1996- Cummins Freightliner, Automotive HX35W Turbo 3538883
Item# turbo-various-cummins-TC-3538883
$1,241.33
Availability: Usually ships the next business day

Product Description


Part Number3538883
Previous Version3538884, 3539010, 3539464
OE number3802882
Year1996-
DescriptionFreightliner, Automotive Various
Manufacturer Part Number3538884, 3539010, 3539464
CHRA3538421 (4027212)(1000020123) $350.00 NEW IN STOCK, MADE IN USA
Turbo Model HX35W, HX35W-E7755L/E12DC11
Engine6B ENCORE, 6B
KW 250/275 HP
Engine Manufacturer Cummins
Angle α (compressor housing)240
Angle β (turbine housing)165
Bearing Housing3532630 $75.00 NEW IN STOCK
Turbine Wheel3519336 (Ind. 70. mm, Exd. 59.9 mm, 12 blades)(401020002) $129.00 NEW IN STOCK
Comp. Wheel3599649 (Ind. 52. mm, Exd. 83.03 mm, Trm 39, 7+7 Blades) $125.00 NEW IN STOCK
Back plate3530923 (1154351300) $33.48 NEW IN STOCK
Heat shield Number3519302 (1152301340, 406400001) $24.95 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Actuator4030203
Gasket oil inlet210060 (311585, 148062, 2475013)(Paper) $4.48
Gasket (oil outlet)3535001 (3922789)(Inox Steel) $21.64
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52
ManufacturerHOLSET

Applications

1996- Cummins Freightliner, Automotive, Various with 6B ENCORE Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
