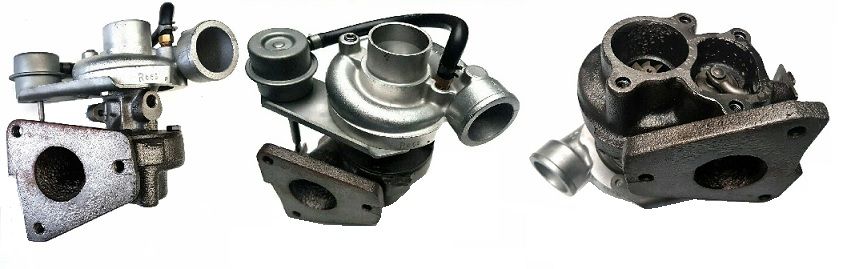

1987-92 Citroen, Peugeot TB0234 Turbo 465343-0001

Item# turbo-car-citroen-TC-4653430001
$1,290.00
Availability: Usually ships the next business day

Product Description


Part Number 465343-5001S
Previous Version 465343-0001
OE number 9601515880, 9301152480
Year 1987-92
DescriptionCitroen, Peugeot
CHRA443854-0013 (443854-5013S) $350.00 NEW IN STOCK, MADE IN USA
Turbo Model TB0234
EngineXUD 7TE, XUD7TE
Displacement 1.7L, 1.7 ccm, 4 Cylinders
Fuel Diesel
KW 90
Angle α (compressor housing)308
Angle β (turbine housing)240
Bearing Housing 444426-0002 $49.00 NEW IN STOCK
Turbine Wheel435243-0002 (435243-0001, 435243-0002, 435243-0004, 435243-0005, 435258-0005, 435259-0001, 435737-0001, 435737-0006, 443850-0001)(Ind. 35.48 mm, Exd. 47.11 mm, Trm 56, 11 Blades)(101080001, 1100020435) $90.80 NEW IN STOCK
Comp. Wheel410450-0011 (Ind. 33.95 mm, Exd. 48. mm, Trm 50, 8 Blades, T2) $48.99 NEW IN STOCK
Back plate430735-0001 (430612-0003) $14.00 NEW IN STOCK
Heat shield Number430875-0001 $13.84 NEW IN STOCK
Repair Kit445118-0001 (723421-0001, 430875-0001) (1100025763) $75.00 NEW IN STOCK
Turbine Housing430609-0095
Compressor Cover409589-0165
Actuator430819-0064 $76.00
Turbine Housing AR 0.35
Settings Waste gate adjustment (pressure)0.760-0.790/0.860-0.960 bar
Settings Waste gate (lift shaft)1.00/3.00 mm
Gasket (turbine inlet)210699 (Inox Steel) $19.00
Gasket (turbine outlet)210800 (Inox Steel) $24.00
Fitting oil inlet430066-0005
Alternatives53149886424, 53149886413, 53149886403, 465343-9001
ManufacturerHoneywell-Garrett

Applications

1987-92 Citroen BX with XUD7TE Engine

1987-92 Peugeot 405 with XUD7TE Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
