SHOP LIKE YOUR MECHANIC

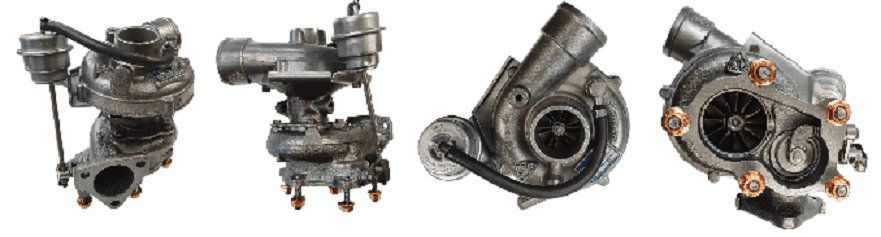

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1992-10 Alfa Romeo 164 TD K06 Turbo 53069880001
Product Description
| Part Number | 53069880001 |
| Previous Version | 5306-988-0001, 5306 988 0001 |
| OE number | C5240030A, 35242038F |
| Year | 1998-10 |
| Description | Alfa Romeo 164 TD |
| Manufacturer Part Number | 53069700001, 5306-970-0001 |
| CHRA | 53067100500 (5306-710-0500)(1000030231) $450.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | K06-2270G, K06-2270GGB5.82GCABD |
| Engine | HR425CHI, VM08B |
| Displacement | 2.5L, 2499 ccm |
| KW | 92/125 |
| RPM Max | 4200 |
| Fuel | Diesel |
| Angle α (compressor housing | 63° |
| Angle β (turbine housing) | 270° |
| Bearing Housing | 53061510000 (53061510001)(Oil Cooled)(1900011409) NEW IN STOCK |
| Turbine Wheel | 53061205001 (53061202100, 53061205000(Ind. 46. mm, Exd. 55. mm, Trm 7.64, 12 Blades))(1100016407) NEW IN STOCK |
| Comp. Wheel | 53061232002 (53061232000)(Ind. 38.36 mm, Exd. 155. mm, Trm 76.73, 6+6 Blades, Superback)(1200016570) NEW IN STOCK |
| Backplate / Seal plate | 53061515700 (53061515704, 53061515701)(1300016159) NEW IN STOCK |
| Heat shield Number | 53061652000 (2030016164) NEW IN STOCK |
| Repair Kit | 53037110000 (5303-711-0000)(53061515704, 53061515701)(1302003752, 5000040005) $68.80 NEW IN STOCK |
| Turbine Housing | 53161015012 (53161015017) |
| Compressor Cover | 53061009001 (53061009000) |
| Turbine Housing AR | 5 |
| Actuator | 58201104001 |
| Settings Waste gate (pressure) | 1 51 bar |
| Settings Waste gate (lift shaft) | 3.00 mm |
| Gaskets Kit | $35.78 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
1992-10 Alfa Romeo 164 TD with HR425CHI, VM08B Engine 1992-10 VM Alfa 164 TD with HR425CHI, VM08B Engine There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
