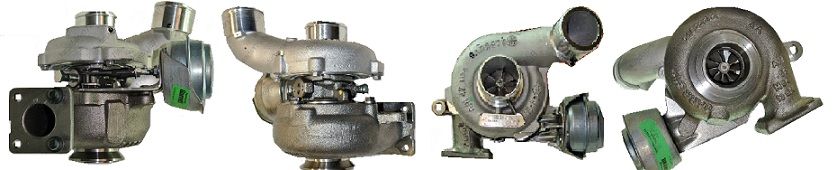

2003-10 Alfa Romeo 147, Fiat GT1749V Turbo 777250-0001

2003-10 Alfa Romeo 147, Fiat GT1749V Turbo 777250-0001
Item# turbo-car-alfa-TC-7772505001S
$1,420.00
Availability: Usually ships the next business day

Product Description


Part Number 777250-5001S
Previous Version 760497-0001, 760497-0002, 777250-0001
OE number 55200925, 55205370, 55214063, 71792879, 71724097, 71793947, 71792881
Year2003-10
Description Fiat Stilo, Alfa-Romeo 147/156/GT
CHRA 703890-0256 (703890-5256S)(1102017918, 1000010471) $295.00 NEW IN STOCK, MADE IN USA
Turbo ModelGTA1749V, GTA1749MV, GT1749V
Engine Manufacturer Fiat
Displacement1.9L, 1900 ccm, 16 valve Euro-4, 4 Cylinders
KW110/150
RPM Max 4000
Fuel Diesel
Engine16V JTD Multi-jet
EGR valve700063100 Electric Pierburg
Bearing Housing (Oil Cooled)(1900011095C) $38.04 NEW IN STOCK
Turbine Wheel 717904-0033 (Ind. 43. mm, Exd. 38. mm, Trm 7.36, 9 Blades)(1102017448, 1100016161) $44.02 NEW IN STOCK
Comp. Wheel 735492-0030 (Ind. 34.72 mm, Exd. 49.02 mm, Trm 3.78, 5+5 Blades, Superback)(1102017402, 1200016350) $49.04 NEW IN STOCK
Back plate 726173-0001 (1102017301, 1300016062) $13.01 NEW IN STOCK
Heat shield Number 433112-0001(1102015342, 2030016021) $22.35 NEW IN STOCK
Repair Kit 318386 (318387)(1252203750, 5000010066H) $98.40 NEW IN STOCK
Nozzle Ring 704013-0043 (1102017834, 3000016036) $168.33 NEW IN STOCK
Turbine Housing AR VNT2
Actuator 723455-0001 (1102117381) NEW IN STOCK
Turbine Housing AR VNT2
Gasket (turbine inlet)210385
Gasket (oil outlet)210243
Gasket Kit 215100 (2090505359) $31.36
Washer (oil inlet fitting435197-0005
Replaced By 777250-0002
ManufacturerHoneywell-Garrett

Applications

2004- Alfa-Romeo 147 1.9 JTD Engine 1.9

2004- Alfa-Romeo 156 1.9 JTDM Engine 1.9

2004- Alfa-Romeo GT 1.9 JTD Engine 1.9

2005-07 Fiat Stilo 1.9 JTD Engine 16V JTD Multi-jet

2007- Fiat Bravo II 1.9 JTD Engine 16V JTD Multi-jet

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
