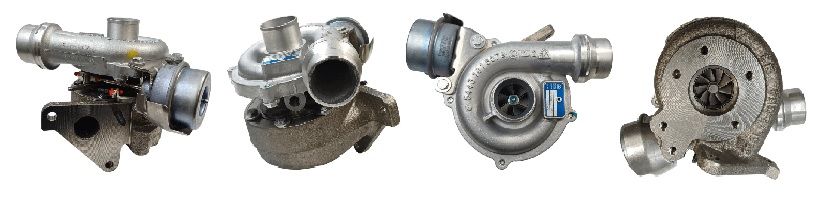

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2003-08 Renault Scenic, Mégane KP39 Turbo 54399980027
Product Description
| Part Number | 54399980027 |
| Previous Version | 5439-988-0002, 5439 988 0027, 54399880002, 54399880027, 5439 988 0002, 5439 988 0027 |
| OE Number | 8200204572, 8200360800, 8200578315, 7701475135, 7701476183, 7711368163 |
| Year | 2003-08 |
| Description | Renault Scénic, Clio, Grand Scenic, Mégane dCi |
| Manufacturer Part Number | 54399700002, 54399700027, 5439-970-0027, 5439 970 0027, 5439 970 0002 |
| CHRA | 54397100512 (5439-710-0512)(1303039905 ,1000030138) $300.00 NEW IN STOCK |
| Turbo Model | BV39-1867CBK426.18AVAXH, KP39 |
| Engine | K9KTHP |
| Engine Manufacturer | Renault |
| Displacement | 1.46L, 1461 ccm, 4 Cylinders |
| KW | 74/101 |
| RPM Max | 4250 |
| Fuel | Diesel |
| Angle α (compressor housing) | 275.5º |
| Angle β (turbine housing) | 298.5º |
| Bearing Housing | (Oil Cooled)(1900011136B) NEW IN STOCK |
| Turbine Wheel | 54391205017 (Ind. 34.5 mm, Exd. 38.5 mm, Trm 6.7, 9 Blades)(1100016162) $110.92 NEW IN STOCK |
| Comp. Wheel | 54431232020 (Ind. 30.9 mm, Exd. 46. mm, Trm 6.2, 6+6 Blades, Superback)(1200016276) $97.00 NEW IN STOCK |
| Back plate | 54391523001 (1303039300, 1800016057) $18.78 NEW IN STOCK |
| Heat shield Number | 54391652001 (2030016045) $21.07 NEW IN STOCK |
| Repair Kit | 54397110003 (5000040040) NEW IN STOCK |
| Nozzle Ring Assy | (1303039835, 3000016025) $194.49 |
| Nozzle Ring Cage | (3300016025C) $228.77 NEW IN STOCK |
| Turbine Housing | IN STOCK |
| Gasket Kit | 215027 (1900100439, 2090505526) |
| Actuator | (2061016314) $82.00 |
| Turbine Housing AR | VTG |
| Gasket (turbine Inlet) | 210680 |
| Gasket (turbine Outlet) | 210681 |
| Gasket (oil Outlet) | 210553 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS DE |
2003-08 Renault Scénic, Clio, Grand Scenic, Mégane dCi with K9KTHP Engine There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
