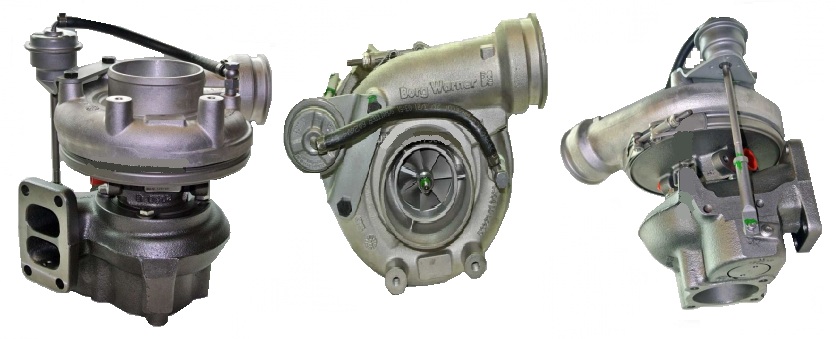

2003-07 Deutz Industrial Tractor S200G Turbo 56209880013

2003-07 Deutz Industrial Tractor S200G Turbo 56209880013
Item# turbo-industrial-deutz-TC-56209880013
$2,901.00
Availability: Usually ships the next business day

Product Description


Part Number56209880013
Previous Version5620-988-0013, 5620 988 0013, 56209880008, 12709880013
OE number04903329, 04903626KZ, 04903626, 04903329, 04903626
Year2003-07
Description Industrial
Manufacturer Part Number56201970008, 56201970013, 5620-197-0008, 5620-197-0013
CHRA56207100000 (5620-710-0000) $1279.46 NEW IN STOCK
Turbo ModelS200G, S200G-3071NRAKB/0.66
Engine TCD2013L6, TCD 2013LO6
Engine Manufacturer Deutz
Displacement7.14L, 7140 ccm
KW253/345
RPM Max2200
FuelDiesel
Angle α (compressor housing)270º
Angle β (turbine housing)45º
Bearing Housing56201500005 (Oil Cooled) $273.90 NEW IN STOCK
Turbine Wheel168431 (Ind. 55.65 mm, Exd. 69.6 mm, Trm 10.57, 10 Blades)(1253200436) $191.16 NEW IN STOCK
Comp. Wheel10771232001 (Ind. 54.7 mm, Exd. 78.6 mm, Trm 10.7, 7+7 Blades, Superback)(10771232001) NEW IN STOCK
Back plate167744 (166537)(1253200300, 1800016062)(304020003) $19.00 NEW IN STOCK
Heat shield Number167997 $44.74 NEW IN STOCK
Repair Kit318378 (312956, 313501, 315438, 318381, 313076, 313654, 313922, 315362)(1252212750, 1252301755) $97.20 NEW IN STOCK
Turbine Housing AR0.64
ManufacturerBorg Warner - 3K - Schwitzer

Applications

2003-07 Deutz Industrial with TCD2013L6

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
