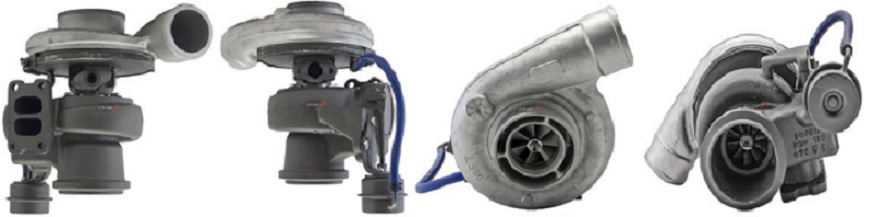

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2003-04 Caterpillar Truck S200AG047 Turbo 178482
Product Description
| Part Number | 178482 |
| Previous Part Number | 174193, 174193R, 174194, 174194R, 174195, 174195R, 174196, 174196R, 174197, 174197R, 174198, 174198R, 174200, 174200R, 174201, 174201R, 174202, 174202R, 174235, 174235R, 178040, 178040R, 178482, 178482R, 474193, 474194, 474195, 474196, 474197, 474198, 474200, 474201, 474202, 474235, 478040, 478482 |
| OE number | 1080030R, 10R1795, 237-5250, 237-5251, 237-5252, 237-5253, 237-5254, 237-5255, 237-5270, 237-5271, 237-5272, 2375250, 2375251, 2375252, 2375253, 2375254, 2375255, 2375270, 2375271, 2375272, 238-5057, 2385057 |
| Year | 2003-04 |
| Description | Truck |
| Manufacturer Part Number | 174201, 174200, 174202, 174193, 174194, 174195, 174196, 174197, 174198, 174235 |
| Turbo Model | S200AG047 |
| CHRA | 178187 (170017, 170017R, 171754, 171754R)(0R7587, 0R7273, 158-6071, 195-6005, 1956005) $751.97 NEW IN STOCK |
| Engine | 3126, C7, (C-7 KAL, C-7 LBM, C-7 SAP, C-7 WAX) |
| Engine Manufacturer | Caterpillar |
| Displacement | 7.0L, 7000 ccm |
| KW | 172/230 |
| RPM Max | 2000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 300° |
| Angle β (turbine housing) | 145° |
| Bearing Housing | 171966 (667730)(Oil Cooled) NEW IN STOCK |
| Turbine Wheel | 167729 (Ind. 60.4 mm, Exd. 69.6 mm, Trm 11.2, 10 Blades) $336 .94 NEW IN STOCK |
| Comp. Wheel | 171967 (Ind. 54.30 mm, Exd. 80.07 mm, 7+7 Blades, Superback) NEW IN STOCK |
| Back plate | 167744 $83.38 NEW IN STOCK |
| Heatshield / Shroud | 167745 (2030016117) $17.79 NEW IN STOCK |
| Repair Kit | 318382 ((318383)1253200750, 5000030021) $97.60 NEW IN STOCK |
| Turbine Housing | 172021 |
| Compressor Cover | 178826 (2080035) |
| Actuator | N/A |
| Gasket Kit | 318419 (318420, 318986)( 2505134, GS33666, 3545575, 3575687, 3580734, 4032401, 4032403, 4032407, 4032438, 4032545) $19.59 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS USA |
2003-04 Caterpillar Truck with 3126, C7 Engine There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
